gearSKIVING

UP TO 8 TIMES FASTER THAN GEAR SHAPING

  • Straight and helical external or internal spur gears and splines
  • Internal teeth possible without an angle head
  • Synchronization and tool path controlled by the cycle
  • Available for machines with SIEMENS / CELOS with SIEMENS  and MAPPS / CELOS with MAPPS
  • TURN & MILL and DMF
    • Herringbone teeth with offset*
    • Crown gears by mathematical transformation  of the 6th virtual axis* on TC & DMF machines

*NTX & CTX TC with counter spindle and SIEMENS

GEAR-CUTTING - WE HAVE THE SOLUTION

Check also gearBROACHING and gearMill


Overview

h_TEM0122_Wälzschäle_CTX_HORN.tif_Crop_ Text-Bild 1150x575px


Focus machines

NLX / CTX (incl. Y axis)

NTX 1000 /
CTX beta TC

NTX 3000 /
CTX gamma TC

DMU eVo / DMF

DMU/C FD
(monoBLOCK,  duoBLOCK  and Portal)
Module*

≤ 1,5

≤ 2

≤ 4

≤ 2 / ≤ 5

≤ 3 / ≤ 11 (mB: 10)
Quality*

≥ 9

≥ 7

≥ 7

≥ 7

≥ 7

Diameter**

max. 150 mm

max. 340 mm

max. 500 mm /
max. 530 mm

max. 800 mm

max. 3,200 mm

* Depending on machine & technology
** Depending on internal or external gear teeth as well as tool dimensions and machine size

External gears

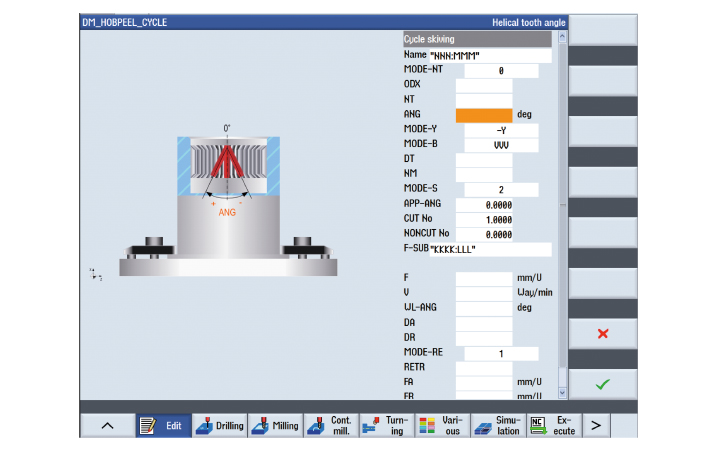

1. Conversational input of all necessary gear data

Internal gears

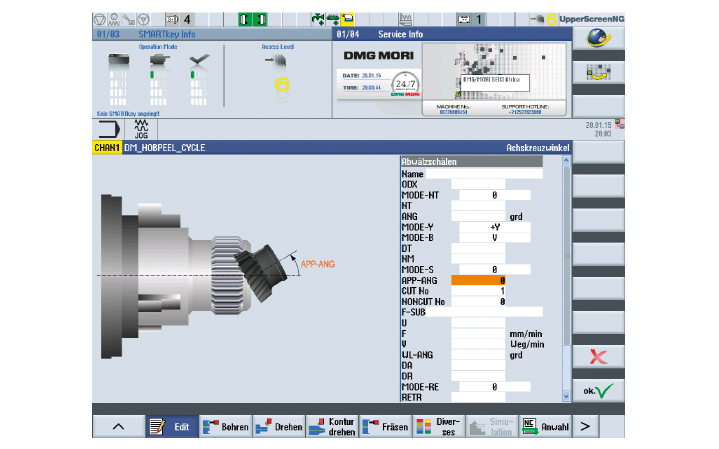

2. The technology cycle automatically creates the NC program

Video

DMG MORI gearSKIVING 2.0

TECHNOLOGY CYCLES

DMQP

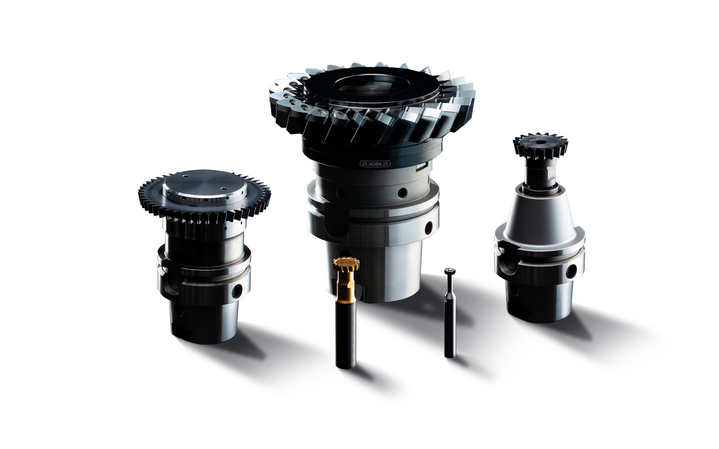

Horn

  • Solid carbide tools and  interchangeable insert systems
  • Version with internal coolant supply
  • Tools from module 0,2 to module 8
