CTX beta 800 4a

CTX beta 800 4A

Compact high productive turning centre with TWIN-concept for 4 axes complete machining

Max. workpiece diameter
340 mm
Max. workpiece length
735 mm
Max. bar capacity diameter
102 mm
Max. X-Axis
300 mm
Max. Y-Axis
120 mm
Max. Z-Axis
800 mm
Control & software alternatives
SIEMENS
Highlights

CTX beta 800 4A machining | EN

4-axis production turning with 2 turrets and counter spindle as standard

  • Two 12-fold VDI 40 star turrets with 4,000 rpm, 11.3 kW and 28 Nm
  • Optional Direct Drive turret with 10,000 rpm and TRIFIX precision quick-change system for highest accuracy
  • Main and counter spindle with 5,000 rpm, 48 kW and 360 Nm.

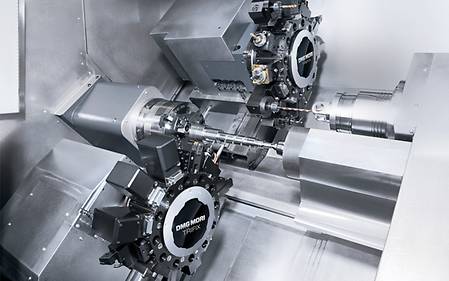

Patented TWIN concept for parallel processing with 2 tool carriers

  • Optimal work space utilization by working space concept with two turrets and cross stroke* of the counter-spindle tailstock combination *
  • Y-axis on both turrets (up ± 60 mm, down * ± 40 mm) for the complete machining of bars, shafts and chuck parts
  • Rotating diameter up to 340 mm at 800 mm turning length

Accuracy

Highest durability due to glass scales in both X-axes

  • Maximum thermal stability due to water-cooled spindle motors
Application Examples
Automation

Standard automation and customised solutions in the VERTICO design

Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:

Control & Software
CELOS and Industry 4.0 by DMG MORI

CELOS

Integrated digitization of the DMG MORI machines & the shop floor:

  • CELOS Machine: APP-based user interface with access to all production-related information
  • CELOS Manufacturing: 27 CELOS APPs for the optimal preparation & processing of orders
  • Digital Factory: Continuous digital workflows from planning to production & service
Service & Training
Downloads & Technical Data
Technology segment
Horizontal Production Turning
Work Area
Max. X-Axis
300 mm
Max. Y-Axis
120 mm
Max. Z-Axis
800 mm
Workpiece
Max. workpiece diameter
340 mm
Max. workpiece length
735 mm
Max. bar capacity diameter
102 mm
Control
SIEMENS
Magazine capacity
Max. capacity
24
Basic functions
Counter spindle
Y-Axis
Production Type
Small series (< 50)
Medium series (50 - 1000)
Large Series (1000 - 100.000)
Automation
Bar Feeder
Gantry loader
Robot
Materials
Aluminum
Steel / Cast
Titanium / Inconel
